What Size Drill Bit Should I Use for a 1/2 Tap? (Complete Size Chart)

Choosing the correct hole size is the most important step in any threading project, especially when you are wondering what size drill bit should i use for a 1/2 tap. If the hole is too small, your tap will break; if it’s too large, the threads will be weak and fail under pressure

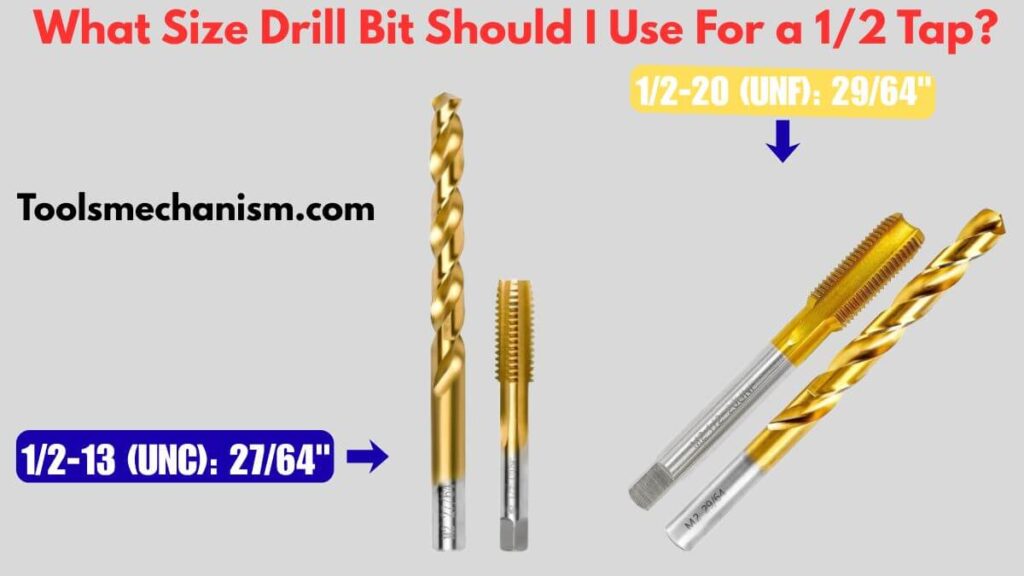

The answer depends on whether you are working with coarse or fine threads. For a standard 1/2-13 UNC (Coarse) thread, you need a 27/64″ drill bit. However, if you are working with a 1/2-20 UNF (Fine) thread, the correct choice is a 29/64″ drill bit. Knowing what size drill bit should i use for a 1/2 tap to ensures a professional and secure fit.

In this comprehensive guide, I will share my hands-on experience to help you choose the right tools for the job. We will look at decimal equivalents, material considerations, and provide a clear chart so you never have to guess what size drill bit for 1/2 tap is needed again.

Using a smaller or larger drill bit might cause problems during tapping. Smaller bits make threading difficult, while larger ones can weaken the thread.

Understanding the Purpose of a Drill Bit in Tapping

Drill bits are essential for tapping. They create threaded holes in different materials. The drill bit size needs to match the tap size. That’s how you get proper thread engagement and avoid issues like misaligned or stripped threads.

The answer depends on whether you are working with coarse or fine threads. For a standard 1/2-13 UNC (Coarse) thread, you need a 27/64″ drill bit. However, if you are working with a 1/2-20 UNF (Fine) thread, the correct choice is a 29/64″ drill bit. Knowing what size drill bit for 1/2 tap to use ensures a professional and secure fit.

Tap Size	Thread Type (TPI)	Correct Drill Bit Size	Decimal Equivalent
1/2-13	Coarse (UNC)	27/64″	0.4219″
1/2-20	Fine (UNF)	29/64″	0.4531″

Factors to Consider when Choosing a Drill Bit Size for a 1/2 Tap

When choosing a drill bit size for a 1/2 tap, several factors need to be considered. These factors will determine the appropriate size that will ensure a successful and efficient tapping process. Without the appropriate drill bit size, the tap may not fit properly or the threads may not be formed correctly, resulting in a compromised final product. To ensure the best outcome, it is important to take into account the following factors:

• Material: The type of material being tapped plays a significant role in determining the drill bit size. Softer materials may require a smaller bit size, while harder materials may necessitate a larger bit size to accommodate the tap.
• Tap size and thread type: The size and type of tap being used will also dictate the appropriate drill bit size. Different taps have specific requirements for the hole diameter in order to create the correct thread size and pitch. Choosing the correct drill bit size ensures compatibility with the chosen tap.
• Depth of hole: The desired depth of the hole will also influence the selection of the drill bit size. It is important to consider the depth of the hole to ensure that the drill bit is long enough to reach the desired depth without going too far and compromising the integrity of the material.
• Cutting speed and lubrication: The cutting speed and lubrication used during the tapping process can also impact the choice of drill bit size. Higher cutting speeds may require larger drill bit sizes to prevent overheating, while adequate lubrication can allow for a smoother tapping process.

Critical Factors When Deciding What Size Drill Bit Should I Use for A 1/2 Tap

Several factors influence the drilling process. The most important is the Thread Pitch. A coarse 1/2-13 thread needs more material removed to create deeper grooves, whereas a fine 1/2-20 thread requires a slightly larger hole because the threads are shallower. Additionally, the Workpiece Material (Steel vs. Aluminum) plays a role; harder materials may require a slightly larger “clearance drill” to prevent tool breakage and ensure smooth entry.

Material of the Workpiece

The material of the workpiece is important to consider when deciding the drill bit size for a 1/2 tap. It affects the drilling process and determines the right bit size.

Let’s look at some common materials used in drilling: Wood, Plastic, and Metal.

Wood is soft and easy to drill through, whereas Plastic can vary in hardness and require different bit sizes. Metal can be either soft (aluminum) or hard (steel), so different bit sizes are needed.

Whether you are drilling through Wood, Plastic, or Stainless Steel, the answer to what size drill bit should I use a 1/2 tap remains scientifically consistent, but the execution changes. For softer metals like Aluminum, a standard 27/64″ bit works perfectly. However, for hardened Steel, ensuring your bit is sharp and well-lubricated is even more important than the size itself to maintain the integrity of the 1/2-inch threaded hole.

Type of Tap

Different taps are used for various drilling projects. It depends on the material and the desired outcome. Common types of taps are spiral point, spiral flute, straight flute, forming and taper taps.

Choosing the right tap for a 1/2 drill bit is essential. For example, spiral point is good for through-hole applications with chip evacuation. Straight flute is best for soft materials that require efficient chip removal.

Matching Your Tap Type with the Correct Drill Bit

Different projects require different taps. Spiral Point Taps are excellent for through-holes as they push chips forward, while Bottoming Taps are needed for holes that don’t go all the way through (blind holes). Regardless of the tap style you choose, the foundation remains the same: you must start with the correct size determined by your initial question—what size drill bit should I use a 1/2 tap?

Standard vs Fine: What Size Drill Bit Should I Use for a 1/2 Tap?

The thread engagement of a drill bit size is an important factor when choosing a 1/2 tap. It is the amount of contact between the tap and material. Let’s look at this table to understand thread engagements for different drill bit sizes and a 1/2 tap:

Tap Size (Thread Type)	Recommended Drill Bit Size	Decimal Equivalent	Action
1/2-13 UNC (Coarse)	27/64″	0.4219″	[View on Amazon]
1/2-20 UNF (Fine)	29/64″	0.4531″	[View on Amazon]

The drill bit size affects the thread engagement. It is essential to pick the right drill bit size for contact between tap & material.

Besides drill bit size, other elements like the material being threaded and the joint strength must be considered too for thread engagement.

Warning! BobVila.com says incorrect drill bit size can lead to weak or failed threads in your project.

Step-by-Step Guide on Choosing the Right Drill Bit Size

When it comes to choosing the right drill bit size for a 1/2 tap, it’s important to follow a step-by-step guide. Here’s a brief and concise breakdown of the process:

1. Determine the Tap Size: Measure the external diameter of the tap and note the size.
2. Identify the Drill Bit Size: Consult a tap and drill chart to find the recommended drill bit size for the tap. Match the tap size with the corresponding drill bit diameter.
3. Consider the Material: Take into account the material you’ll be drilling into. Some materials require different bit sizes for optimal performance, so adjust accordingly.

Step-by-Step Guide: How to Drill and Tap a 1/2″ Hole

Step 1: Mark Your Center
Use a center punch and hammer to create a small dimple. This prevents your 27/64″ or 29/64″ drill bit from sliding across the surface.

Step 2: Drill a Pilot Hole (Optional but Recommended)
Start with a smaller bit (like 1/8″) to create a guide hole. This makes it much easier for the larger 1/2 tap drill bit to stay centered.

Step 3: Drill the Main Hole
Use your 27/64″ (for UNC) or 29/64″ (for UNF) bit. Apply steady pressure and use cutting oil to keep the bit cool and sharp.

Step 4: Begin Tapping
Insert the 1/2″ tap into a T-handle wrench. Place it into the hole and turn it clockwise. After every half-turn, turn it back a quarter-turn to break the metal chips.

Measure the Tap’s Shank Diameter

Get precise measurements of the tap shank diameter with these simple steps:

1. Grab a caliper with exact readings.
2. Put the caliper’s jaws around the tap’s shank.
3. Tighten the jaws until they grab the tap.
4. Note down the reading on the caliper.

Knowing the tap’s shank diameter is important for choosing the right drill bit size. This ensures that the drill bit size is the same as the tap’s, creating precise holes.

Did you know? source name states that if the drill bit size doesn’t match the tap shank diameter, the holes may be incorrect and the drilling results can be compromised.

Determine the Tap’s Thread Pitch

Figuring out the thread pitch of a tap is a must if you want to pick the right drill bit size. Here’s a step-by-step walkthrough to help you:

1. Inspect the Tap: Take a close look. Check for numbers or letters on the shank that show the thread pitch.
2. Count Threads: If you don’t see any markings, count the threads on the tap across one inch. Start and end with visible threads.
3. Use Thread Pitch Gauge: If this is tough to do, use a thread pitch gauge. Slide the teeth onto the threads until one fits perfectly.
4. Match with Standard Sizes: When you’re sure of the thread pitch, compare it with sizes in drilling catalogs or online charts. That’ll help you figure out the drill bit size for your tap.
5. Try Thread Chasers: If you can’t match your tap’s thread pitch, try thread chasers to clean existing threads instead of cutting new ones. That way, you can keep existing parts and fix issues.
6. Ask a Professional: If you’re still uncertain, get help from a specialist in threading applications. They can give you tailored advice.

Remember, in earlier times, people used manual inspection and experience to figure out tap thread pitches. It’s not like today where standardized measurements and tools exist.

To sum up, knowing how to determine tap thread pitches accurately is key for precise results and compatibility between taps and drill bits.

Calculate the Recommended Drill Bit Size

DIY-ers, it’s time to get your drill bit size right! Learn to calculate the perfect size for precision and accuracy. Here’s how:

1. Step 1: Identify the material. Different materials need different bit sizes. Wood, metal or concrete – each has its own specifications.
2. Step 3: Use a reliable drill bit chart to know the suitable drill bit size for your material/hole size. Easily find these online or at hardware stores.
3. Identify the Thread: Check your bolt to see if it is 1/2-13 (Coarse) or 1/2-20 (Fine).
4. Select the Bit: Use a 27/64″ bit for coarse threads and a 29/64″ bit for fine threads.
5. Verify with a Caliper: Measure the tap’s shank and the drill bit to ensure they match the professional specifications.
6. Center Punch: Always mark your starting point to prevent the drill bit from wandering across the material.
7. Drill and Lubricate: Use high-quality cutting oil to keep the temperature down and ensuring the threads stay clean and sharp.

Tips for Using the Recommended Drill Bit Size

To use a 1/2 tap successfully, here are 3 simple steps:

1. Choose the right drill bit size. Check a drill bit sizing chart or manufacturer’s instructions. The right size is important for nice, precise holes.
2. Securely fasten the workpiece. Clamp or hold it tight to stop any movement or vibrations.
3. Use the right technique and lubrication. Apply consistent pressure and keep the drill spinning. Cutting oil or another lubricant helps the drill bit and tap last longer.

Remember, precision is key when using a 1/2 tap. Following these tips will help your drilling project go smoothly.

Common Mistakes to Avoid in Choosing the Drill Bit Size

Mistakes to Avoid When Asking What Size Drill Bit Should I Use A 1/2 Tap

The most common error is using a 7/16″ bit (0.4375″) for a 1/2-13 tap. While it seems close to 27/64″ (0.4219″), that extra 0.015″ significantly weakens the thread engagement. Another mistake is ignoring the Decimal Equivalent; always refer to a professional tap and drill chart to confirm you are using the precise tool for your 1/2-inch tapping project.sures a secure and stable tap. It also reduces the risk of accidents.

Conclusion: Get the Perfect Thread Every Time

To find the right drill bit size for a 1/2 tap, it’s important to consider the project’s needs. This size may vary, based on the material and thread engagement desired.

Finding the right answer to what size drill bit should i use for a 1/2 tap is the difference between a successful project and a ruined piece of material. By following our chart and using the correct 27/64″ or 29/64″ bits, you ensure that your bolts will fit securely and last for years. Grab the right tools from the links above and start your project with confidence!

Frequently Asked Questions

1. Can I use a 7/16″ drill bit for a 1/2-13 tap?
A 7/16″ bit is slightly larger (0.4375″) than the required 27/64″ (0.4219″). While it might work in a pinch, your threads will be shallower and weaker. It’s always best to use the exact 27/64″ size.

2. What is the decimal equivalent of a 27/64″ drill bit?
The decimal equivalent is 0.4219 inches. This is the standard size for a 75% thread engagement for a 1/2-13 UNC tap.

3. Why is the drill bit for 1/2-20 larger than 1/2-13?
Fine threads (1/2-20) are shallower than coarse threads (1/2-13). Therefore, you need to leave more material on the walls of the hole, which requires a larger 29/64″ drill bit.

4. Do I need a hammer drill for this?
No, a standard power drill or a drill press is perfect for tapping. A hammer drill is only for concrete and could damage your metal workpiece.

5. Should I use lubricant while drilling?
Yes! Always use a tapping fluid or multi-purpose oil. It reduces friction, prevents the bit from dulling, and ensures the 1/2 tap creates clean, sharp threads.

6. What size drill bit should I use for a 1/2″ tap?

For a 1/2-13 UNC tap. tap 27/64″ drill bit and Fine threads (1/2-20)you should use a drill bit that is 29/64″ in size drill bit.

7. Are there any safety precautions I should keep in mind while drilling and tapping?

Yes, it is important to wear protective eyewear when drilling and tapping to prevent any potential eye injuries.
