What Size Drill Bit for 1/4 Tapcon? (A Complete Guide)

The question what size drill bit for 1/4 tapcon? is the most critical one for a secure installation, as the wrong size will cause the anchor to fail. Tapcons are widely used in construction. But, do you know the drill bit size for 1/4 Tapcon screws? It’s essential to know this for a secure fit.

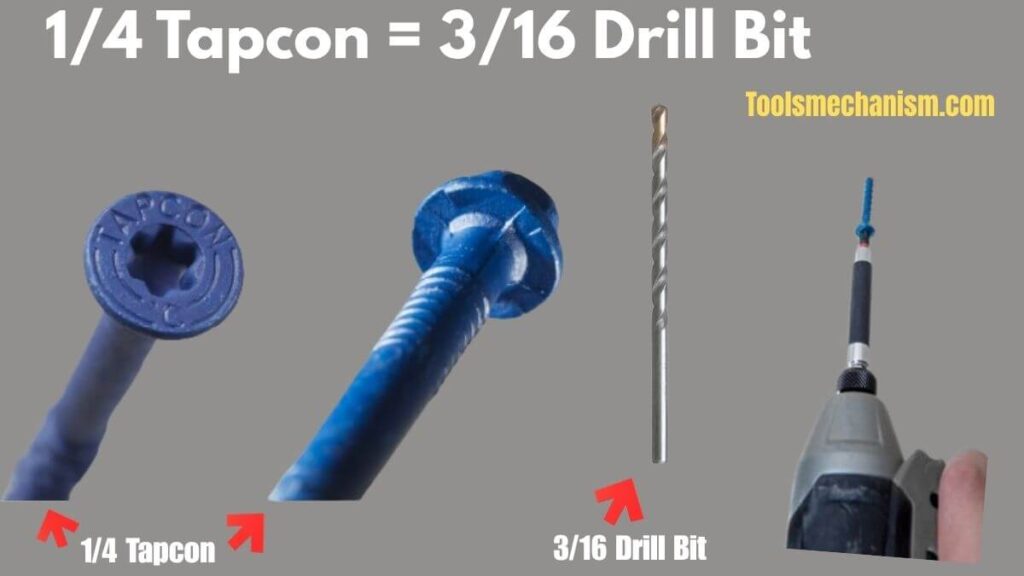

For 1/4 Tapcons, you need a 3/16 inch drill bit. This provides enough clearance for the threads. Plus, it creates a snug fit. Using the wrong size can cause loosened or damaged fasteners.

According to the chart below, the correct bit for a 1/4 inch fastener is always 3/16 inch.

Note: For a standard 1/4″ Tapcon screw, always use a 3/16″ masonry drill bit to ensure a tight and secure fit in concrete or brick.

Read the manufacturer’s instructions to determine the exact drill bit size for your Tapcon screws. Also, consider material hardness and condition.

Let me tell you a story to illustrate the importance of correct drill bit size. A homeowner installed outdoor lights on their concrete walkway with what size drill bit for . But, they used a bigger drill bit than needed.

The holes let in water during bad weather. This caused extensive damage to the electrical connections and structural stability. So, using the right drill bit size is vital for any Tapcon installation.

Understanding Tapcon Screws

What Size Drill Bit for 1/4 Tapcon .For that you need to understand Tapcon screw. Tapcon screws are a type of concrete anchor that provide strong and reliable fastening solutions. Used in construction projects, these screws offer excellent holding power in concrete, brick and masonry.

Let’s explore Tapcon screws’ key features:

• Material: High-quality stainless steel or carbon steel, for durability and corrosion resistance.
• Thread Design: Unique thread design creates a secure hold. Threads aggressively engage with the surrounding material.
• Head Type: Hex or Phillips head – choice depends on application and preference.
• Size Range: Small to large diameters for various needs.
• History: Developed by ITW Buildex in 1976. Tapcon revolutionized fastening systems for anchoring into concrete and other hard materials. Now widely recognized as one of the most reliable choices for securing items in demanding environments.

Importance of Correct Drill Bit Size

What Size Drill Bit for 1/4 Tapcon. That’s why the Importance of the right drill bit is immense. When drilling holes for a 1/4 Tapcon, the size of the drill bit is key. It has to match the diameter of the Tapcon to give a snug fit and ensure secure anchoring, otherwise the fastener won’t hold.

Using a drill bit that’s too small can make the Tapcon spin or loosen. A bit that’s too big may weaken the surrounding material, reducing its ability to keep the fastener in place.

To determine the correct drill bit size, consult manufacturer guidelines or measure the Tapcon with calipers or similar tools. Different brands may have slight variations in their Tapcon dimensions, so measuring your specific fastener is best.

In conclusion, selecting and using the right drill bit size is vital for successful results with a 1/4 Tapcon. Refer to the manufacturer guidelines or measure the fastener for optimal results.

Determining the Drill Bit Size for 1/4 Tapcon

What Size Drill Bit for 1/4 Tapcon and Accuracy is key when picking a drill bit size for 1/4 Tapcon. Here are four steps to get the right size:

1. Check the packaging. It’ll show the suggested drill bit size.
2. Measure the Tapcon if no info is provided. Use calipers or a ruler.
3. Look up the diameter on a drill bit chart or matching guide.
4. Test the bit before drilling. Try it on a less visible area.

For extra precision and efficiency, use a variable-speed drill with adjustable torque settings. With these tips, you’ll be able to successfully install your 1/4 Tapcons.

Tapcon Drill Bit Size & Length Selection Chart: Official Recommendations

One of the most common questions for DIYers is, what size drill bit for 1/4 tapcon should I use? The answer is simple but critical for a secure fit. According to the chart below, the correct bit for a 1/4 inch fastener is always 3/16 inch.

Note: For a standard 1/4″ Tapcon screw, always use a 3/16″ masonry drill bit to ensure a tight and secure fit in concrete or brick.

Step-by-Step Guide: Finding the Right Drill Bit Size

What Size Drill Bit for 1/4 Tapcon So, Step-by-Step Guide: Finding the Right Drill Bit Size.

Nailing the Correct Drill Bit Size is essential for successful drilling. Follow these 3 straightforward steps for an easy experience:

1. Estimate Tapcon Size: Start by determining the size of the Tapcon screw you wish to use. In this case, we need a 1/4-inch Tapcon, with a thread diameter of 1/4 inch.
2. Figure Out Pilot Hole Diameter: The next step is to discover the suitable pilot hole diameter for the Tapcon screw. Check the manufacturer’s guidance or use a basic rule: the pilot hole should be slightly smaller than the screw’s outer diameter. For 1/4-inch Tapcons, a 3/16-inch pilot hole is suggested.
3. Pick Matching Drill Bit: Now that you know your ideal pilot hole diameter, get a drill bit of the same size. In this case, you need a 3/16-inch drill bit.

For maximum drilling performance and to avoid any mistakes, consider these tips:

• Get High-Quality Bits: Buy good-quality drill bits made from tough materials like cobalt or high-speed steel (HSS) for extended life and better results.
• Think About Masonry Bits: When working with concrete or masonry surfaces, it’s wise to use specialized masonry bits designed for such materials.
• Regulate Speed and Pressure: Keep a steady drilling speed and use consistent pressure when doing the job. Avoid over-powering as it can harm or break your drill bit and workpiece.

By following these simple steps and advice, you can easily find the right drill bit size for your 1/4-inch Tapcon screws and According to the chart above, the correct bit for a 1/4 inch fastener is always 3/16 inch. and you can What Size Drill Bit for 1/4 Tapcon.

Tips for Drilling with a Tapcon Screws

Drilling with Tapcon screws needs accuracy and skill. Here are some great tips to help you:

1. Pick the right drill bit size. For a 1/4 inch Tapcon, the drill bit size should be 3/16 inch. This size will give the screw a secure fit in the material.
2. Clear the drilling surface. Before drilling, remove any debris or hindrances from the surface.
3. Drill to the correct depth. Measure the length of the Tapcon screw and mark it on the drill bit. Drill until you reach the mark. This will ensure the screw is firmly anchored into the material.

By following these tips, you can have successful results when using Tapcon screws.

Pro Tip: Apply light pressure while drilling to prevent the drill bit and material from heating up. Practicing on scrap materials can help you perfect your technique and build confidence. Learn What Size Drill Bit for 1/4 Tapcon and To determine the drill bit size needed for a 1/4 Tapcon, consider the project’s specific requirements. A 3/16-inch drill bit is usually recommended. According to the chart above, the correct bit for a 1/4 inch fastener is always 3/16 inch.

Consult the manufacturer’s guidelines or do a test in an inconspicuous area. Also, think about the type of surface and possible obstructions.

The right drill bit size for your 1/4 Tapcon needs careful consideration. By choosing the right bit size and following the guidelines, you can ensure successful installation and long-term results.

Ready to Start Your Project?

To get the job done right the first time, you need a high-quality masonry bit that won’t dull quickly. We have selected the top-rated 3/16″ drill bit that is specifically designed for 1/4″ Tapcon screws. Click the button below to check the latest price and customer reviews on Amazon.

Conclusion: Success Starts with the Right Size

Choosing the correct drill bit for a 1/4″ Tapcon is not just a suggestion; it’s a requirement for a secure and long-lasting installation. As we’ve discussed, the 3/16″ masonry drill bit is the only correct match for this specific fastener. Using the wrong size can lead to stripped threads or loose anchors. Always remember to drill slightly deeper than the screw length and clear the dust for the best results. Happy DIY-ing!
